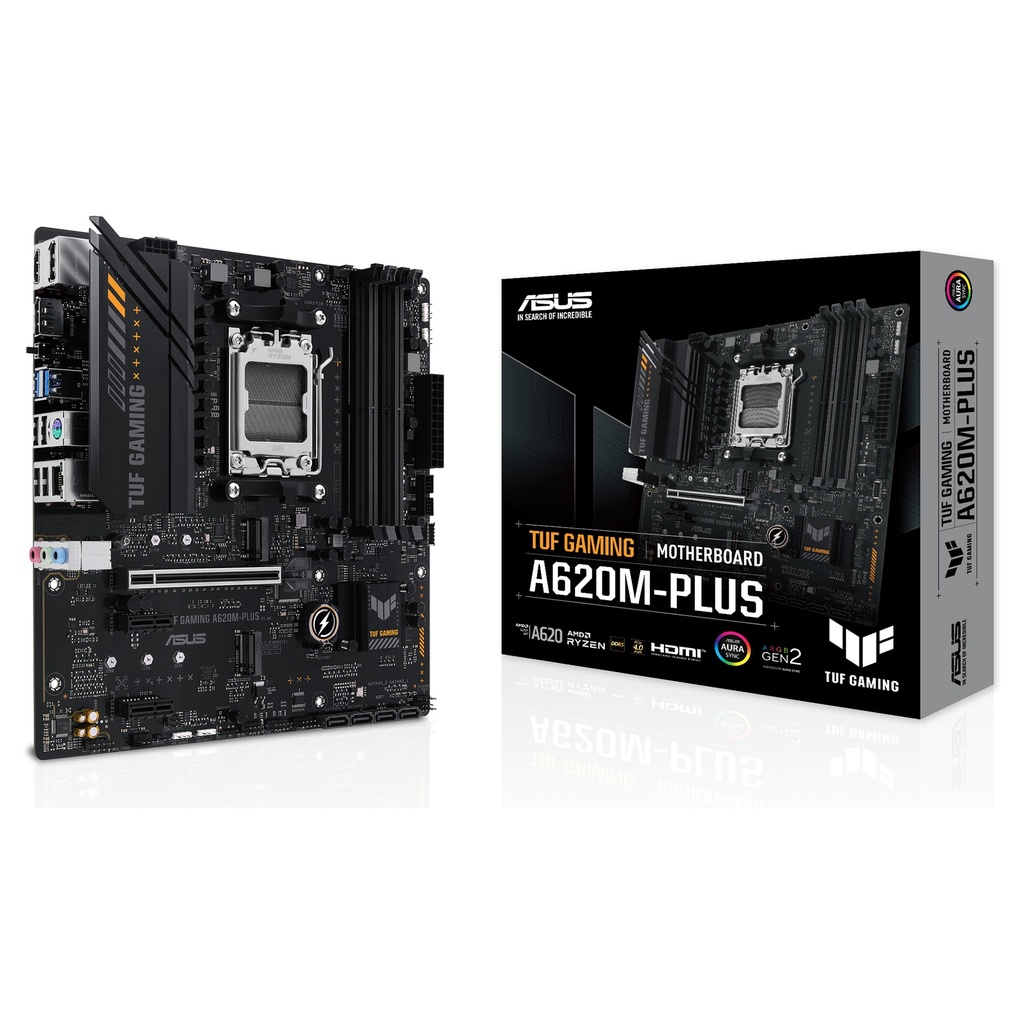

ASUS TUF GAMING A620M-PLUS A620 AM5 mATX - 90MB1EZ0-M0EAY0
ASUS TUF GAMING A620M-PLUS. Processor Manufacturer: AMD, Processor Socket: Socket AM5, Compatible Processors: AMD Ryzen 7000 Series. Supported Memory: DDR5-SDRAM, Max RAM: 128 GB, Memory Type: DIMM. Supported Storage Interfaces: M.2, SATA III, Supported Storage Drives: HDD & SSD, RAID Level: 0, 1, 10. Ethernet Interface Type: 2.5 Gigabit Ethernet. For: PC, Motherboardformfaktor: micro ATX, Motherboard Chipsatz Familie: AMD
Interne Referenz :
242188Barcode :
4711387164303MPN :
90MB1EZ0-M0EAY0Website-Produktkategorien :
PC MotherboardsASUS TUF GAMING A620M-PLUS A620 AM5 mATX - 90MB1EZ0-M0EAY0
AMD A620 motherboard on AM5 socket with DDR5 memory — a reliable foundation for your PC build.
Technical Specifications
ProcessorProcessor manufacturer: AMD
Processor socket: Socket AM5
Compatible processor series: AMD Ryzen 7000 Series
Supported processor sockets: Socket AM5
Memory
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: ECC & Non-ECC
Supported memory clock speeds: 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz
Supported memory clock speed (max): 6400 MHz
Maximum internal memory: 128 GB
Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 4
Number of storage drives supported: 6
RAID support: Yes
RAID levels: 0, 1, 10
Graphics
Parallel processing technology support: Not supported
Internal I/O
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of SATA III connectors: 4
S/PDIF out connector: Yes
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 2
EPS power connector (8-pin): Yes
Number of COM connectors: 1
12V power connector: Yes
RGB LED pin header: Yes
Rear panel I/O ports
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 1
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 2
DisplayPort version: 1.4
Headphone outputs: 1
Line-in: Yes
Network
Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Wi-Fi: No
Features
Motherboard chipset: AMD A620
Audio output channels: 7.1 channels
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
Cooling type: Passive
Power source type: ATX
Windows operating systems supported: Windows 10, Windows 11
Expansion slots
PCI Express x1 (Gen 3.x) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 2
BIOS
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Packaging data
Package width: 275 mm
Package depth: 275 mm
Package height: 67.5 mm
Package weight: 850 g
Weight & dimensions
Width: 244 mm
Depth: 244 mm
Packaging content
Cables included: SATA
User guide: Yes
Other features
Back-to-BIOS button: Yes
| General Information | |
|---|---|
| Marke | ASUS |
| Motherboard Chipset | A620 |
| Motherboard Form Factor | Micro-ATX |
| Condition | |
| Condition | Brand New |
| CPU | |
| CPU Manufacturer | AMD |
| Processor Socket | AM5 |
| Memory | |
| RAM Technology | DDR5 |
| Maximum RAM Supported | 128GB |
| Number of RAM Slots | N/A |
| Storage | |
| No. of M.2 Slots | 2 |
