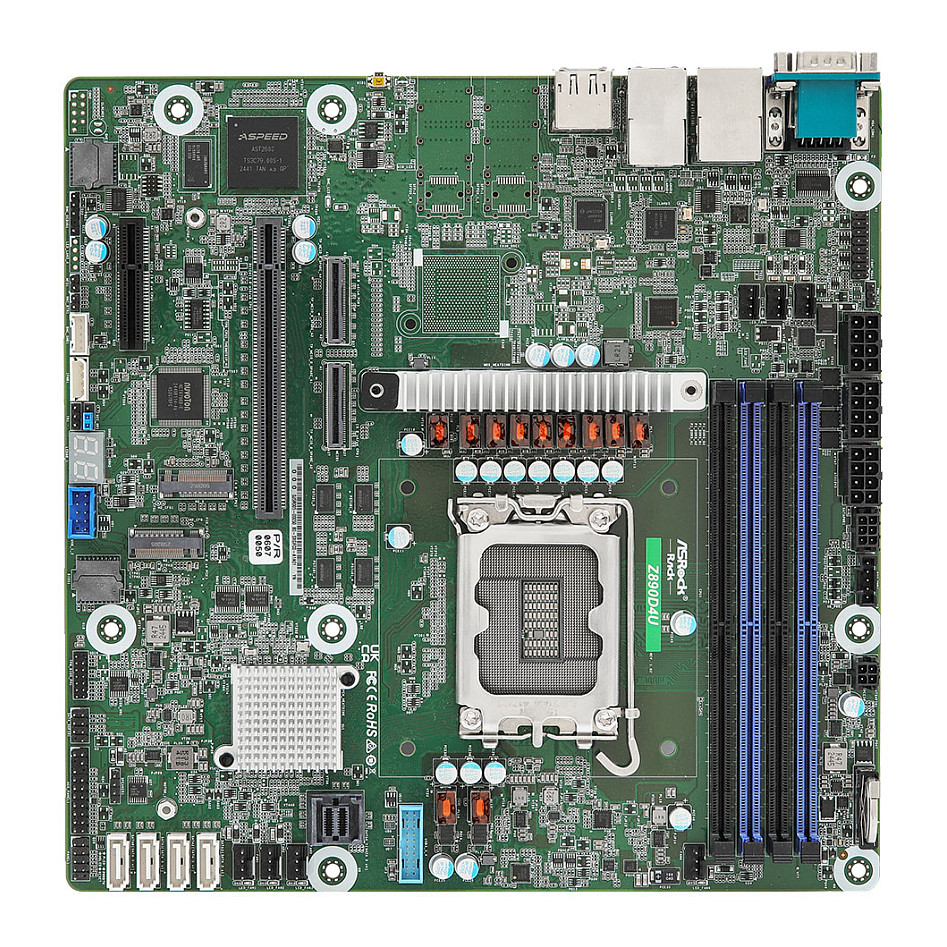

ASRock 11851 Z890 mATX - Z890D4U
Asrock Z890D4U. Processor Manufacturer: Intel, Processor Socket: LGA 1851 (Socket V1), Compatible Processors: Intel Core Ultra (Series 2). Supported Memory: DDR5-SDRAM, Max RAM: 64 GB, Memory Type: DIMM. Supported Storage Interfaces: SATA III, RAID Level: 0, 1, 5, 10. Graphics Family: ASPEED, Graphics Card: AST2600. Ethernet Interface Type: Gigabit Ethernet, LAN-Controller: Intel I210
Εσωτερικός Κωδικός :
21311429Barcode :
4711430525020MPN :
Z890D4UASRock 11851 Z890 mATX - Z890D4U
Intel Z890 motherboard on LGA1851 socket with DDR5 memory — a reliable foundation for your PC build.
Technical Specifications
ProcessorProcessor Manufacturer: Intel
Processor Socket: LGA 1851 (Socket V1)
Compatible Processors: Intel Core Ultra (Series 2)
Speicher
Supported Memory: DDR5-SDRAM
Memory Slots: 4
Memory Type: DIMM
Number of der Pins des Speichersteckplatzes: 288
Memory Voltage: 1.1 V
ECC Compatibility: Non-ECC
Supported Arbeitsspeichergeschwindigkeit: 4400,4800,5600 MHz
Max RAM: 64 GB
Speicher-Controller
Supported Storage Interfaces: SATA III
RAID Support: Ja
RAID Level: 0, 1, 5, 10
Grafik
Eingebaute Grafikadapter: Ja
Graphics Family: ASPEED
Graphics Card: AST2600
Interne E/A-Connectors
Number of USB 2.0 Schnittstellen: 2
USB 3.2 Gen 1 (3.1 Gen 1) Connectors: 2
SATA III Connectors: 8
Front Panel Audiostecker: Ja
ATX Stromstecker (24-pol.): Ja
Power Fan Connector: Ja
TPM-Connector: Ja
E/A-Connectors auf der Rear
USB 3.2 Gen 1 (3.1 Gen 1) Number of der Connectors vom Type A: 2
Number of Ethernet-LAN-Connectors (RJ-45): 2
IPMI LAN (RJ-45)-Connector: Ja
Number of VGA (D-Sub) Connectors: 1
Number of HDMI-Connectors: 1
Number of DisplayPort Connectors: 1
Number of serielle Connectors: 1
Netzwerk
Ethernet/LAN: Ja
Ethernet Interface Type: Gigabit Ethernet
LAN-Controller: Intel I210
WLAN: Nein
Merkmale
Motherboard Chipsatz: Intel Z890
For: Server
Motherboardformfaktor: micro ATX
Motherboard Chipsatz Familie: Intel
Power Source: ATX, Gleichstrom
Supported Linux-Betriebssysteme: Ubuntu 24.04 LTS, SuSE Linux 15, Red Hat Enterprise Linux 10.0, Red Hat Enterprise Linux 9.6
Supports Windows-Betriebssysteme: Windows 10, Windows 11
Expansion Slots
PCI Express x16-Slots (Gen 5.x): 1
1. M.2 largest Key Size: 2280
1. M.2 highest PCI Express-Generation: 4.0
2. M.2 largest Key Size: 2280
2. M.2 highest PCI Express-Generation: 4.0
BIOS
BIOS-Type: AMI
BIOS-Memory Size: 256 Mbit
ACPI-Version: 6.4
Systemverwaltung BIOS (SMBIOS) Version: 2.3
Betriebsbedingungen
Temperaturbereich bei Lagerung: -40 - 70 °C
Operating Temperature: 10 - 35 °C
Relative Luftfeuchtigkeit in Betrieb: 20 - 90%
Weight und Dimensions
Width: 243,8 mm
Depth: 243,8 mm
| General Information | |
|---|---|
| Κατασκευαστής | ASRock |
| Chipset Μητρικής | Z890 |
| Motherboard Form Factor | Micro-ATX |
| Condition | |
| Κατάσταση | Brand New |
| CPU | |
| Κατασκευαστής CPU | Intel |
| Socket Επεξεργαστή | LGA1851 |
| Memory | |
| Τεχνολογία RAM | DDR5 |
| Μέγιστη Υποστηριζόμενη RAM | N/A |
| Αριθμός Slots RAM | 4 |
| Storage | |
| Αριθμός Slots M.2 | N/A |
