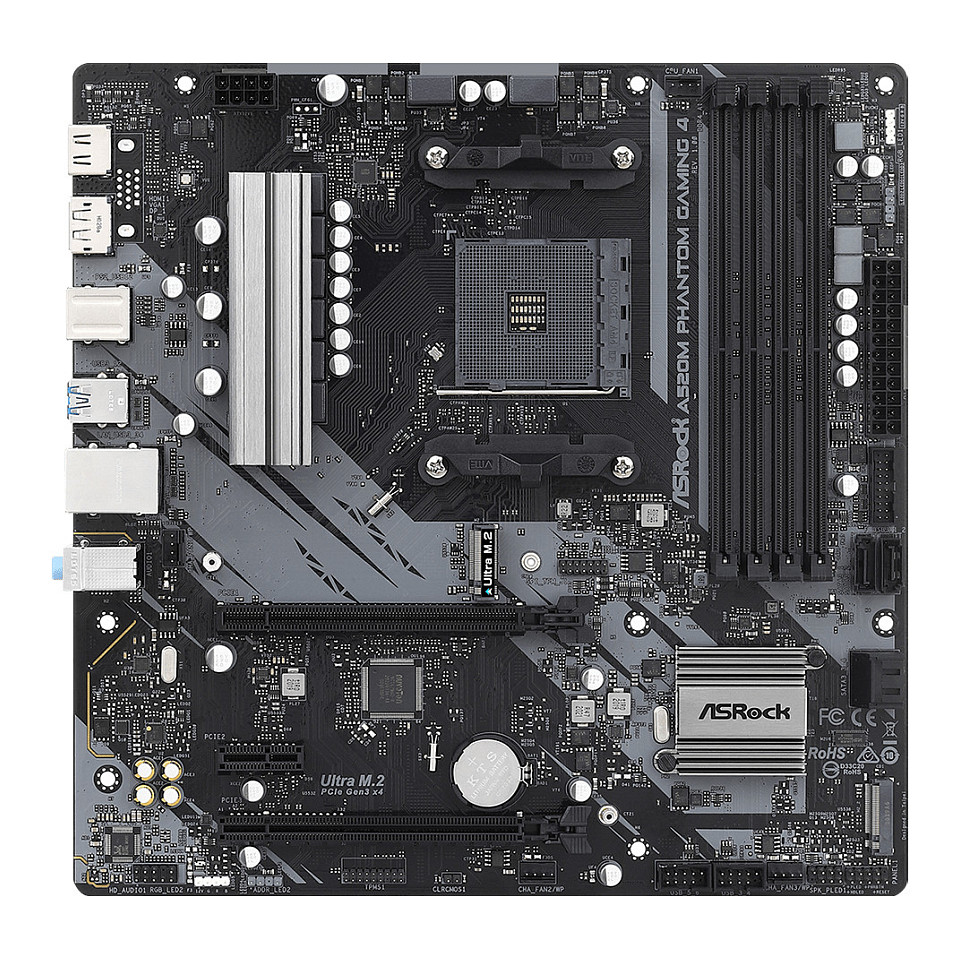

ASRock HDMI/DP A520 AM4 mATX - A520M Phantom Gaming 4
Asrock A520M Phantom Gaming 4. Processor Manufacturer: AMD, Processor Socket: Socket AM4, Compatible Processors: AMD Ryzen™ 3, AMD Ryzen™ 5. Supported Memory: DDR4-SDRAM, Max RAM: 128 GB, Memory Type: DIMM. Supported Storage Interfaces: M.2, PCI Express 3.0, SATA, Supported Storage Drives: HDD & SSD. Maximaler Grafikkartenspeicher: 16000 MB, Graphics Family: AMD, Grafikkarte: Radeon Vega. For: PC, Motherboardformfaktor: micro ATX, Motherboard Chipsatz Familie: AMD
Εσωτερικός Κωδικός :
21230171Barcode :
4710483932915MPN :
A520M Phantom Gaming 4Asrock A520M Phantom Gaming 4. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen™ 3, AMD Ryzen™ 5. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 3.0, SATA, Supported storage drive types: HDD & SSD. Maximum graphics card memory: 16000 MB, Graphics card family: AMD, Graphics card: Radeon Vega. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD
8 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers enhanced performance with the lowest temperature for advanced gamers.
Premium 50A Power Choke
Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
AMD SMART ACCESS MEMORY
Conventional PC systems processor can only access a fraction of graphics memory and limits system performance. With AMD Smart Access Memory, the data channel gets expanded to harness the full potential of GPU memory, removes the bottleneck and increase performance.
Dual M.2 For SSD
One PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s. The other one supports PCIe Gen3 x2 & SATA3 M.2 modules.
2oz Copper PCB
2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking, it's able to support the latest DDR4 memory modules with most extreme memory performance!
RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB
This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
Dual Graphics Outputs
Complete with two types of most used connectors! Packed with a HDMI + DisplayPort combo, you have more graphics output options now.
HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
AMD StoreMI Technology
A powerful tool that combines the speed of your SSD with the capacity of your hard disk into a single, fast, easy-to-manage drive, AMD StoreMI technology “combines” these two types of storage into a single drive and automatically moves the data you access the most to the SSD, so you get the best of both worlds.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
Processor manufacturer: AMD
Processor socket: Socket AM4
Compatible processor series: AMD Ryzen™ 3, AMD Ryzen™ 5
Memory
Supported memory types: DDR4-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: ECC & Non-ECC
Supported memory clock speeds: 2133,2400,2667,2933,3200,3466,3600,3733,3800,3866,4000,4133,4200,4266,4333,4400,4466,4533,4733 MHz
Maximum internal memory: 128 GB
Unbuffered memory: Yes
Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, PCI Express 3.0, SATA
Graphics
Maximum graphics card memory: 16000 MB
On-board graphics card: Yes
Graphics card family: AMD
Graphics card: Radeon Vega
HDCP: Yes
DirectX version: 12.0
Internal I/O
Number of SATA III connectors: 4
Number of SATA connectors: 4
Rear panel I/O ports
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 1
HDMI ports quantity: 1
DisplayPorts quantity: 1
DisplayPort version: 1.4
Microphone in: Yes
Network
Ethernet LAN: Yes
Features
Motherboard chipset: AMD A520
Audio output channels: 7.1 channels
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
Windows operating systems supported: Windows 10
Certification: FCC, CEErP/EuP ready (ErP/EuP ready power supply is required)
Expansion slots
PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 (Gen 3.x) slots: 2
BIOS
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
ACPI version: 5.1
System Management BIOS (SMBIOS) version: 2.3
Logistics data
Harmonized System (HS) code: 84733020
Weight & dimensions
Width: 244 mm
Depth: 244 mm
| General Information | |
|---|---|
| Κατασκευαστής | ASRock |
| Chipset Μητρικής | AMD A520 |
| Condition | |
| Κατάσταση | Brand New |
| CPU | |
| Κατασκευαστής CPU | Intel |
| Socket Επεξεργαστή | AM4 |
| Memory | |
| Τεχνολογία RAM | DDR4 |
| Αριθμός Slots RAM | 4 |
