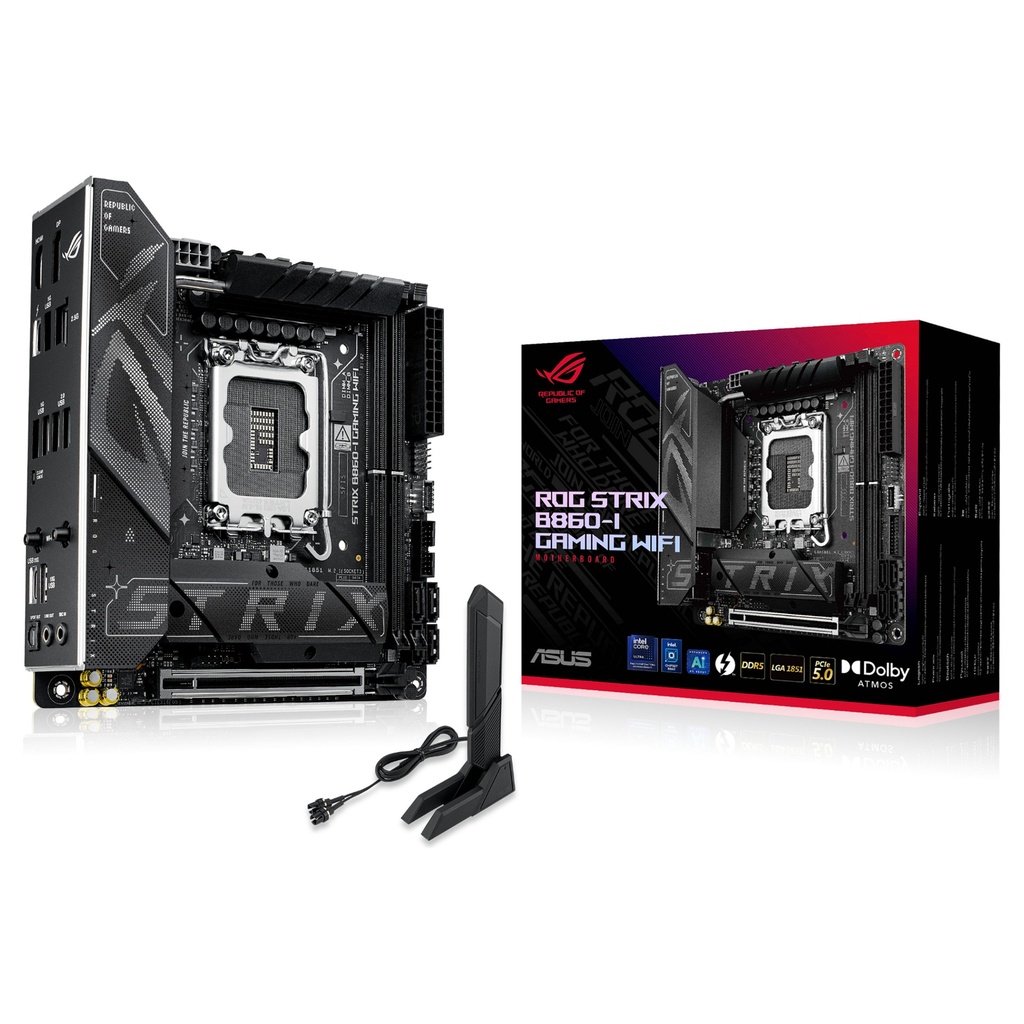

ASUS ROG STRIX I GAMING B860 LGA1851 - 90MB1JB0-M0EAY0
ASUS ROG STRIX B860-I GAMING WIFI. Prozessorhersteller: Intel, Prozessorsockel: LGA 1851 (Socket V1), Kompatible Prozessoren: Intel Core Ultra (Series 2). Unterstützte Arbeitsspeicher: DDR5-SDRAM, RAM-Speicher maximal: 128 GB, Arbeitsspeicher Typ: DIMM. Unterstützte Speicherlaufwerk-Schnittstellen: M.2, SATA III, Unterstützte Speicherlaufwerke: HDD & SSD, RAID Level: 0, 1, 5, 10. Ethernet Schnittstellen Typ: 2.5 Gigabit Ethernet, Top WLAN-Standard: Wi-Fi 7 (802.11be). Komponente für: PC, Motherboardformfaktor: mini ITX, Motherboard Chipsatz Familie: Intel
Εσωτερικός Κωδικός :
865484Barcode :
4711387815991MPN :
90MB1JB0-M0EAY0Κατηγορία Είδους για Ιστότοπο :
Μητρικές ΥπολογιστήASUS ROG STRIX I GAMING B860 LGA1851 - 90MB1JB0-M0EAY0
Intel B860 motherboard on LGA1851 socket with DDR5 memory — a reliable foundation for your PC build.
Technical Specifications
FeaturesWindows operating systems supported: Windows 11
Other features
Audio output: Realtek ALC1220P 7.1 Surround Sound High
Definition Audio CODEC*
- Impedance sense for front and rear
headphone outputs
- Internal audio Amplifier to enhance the
highest quality sound for headphone and speakers
- Supports: Jack-detection,
Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback
output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz
playback*"
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
* Due to limitations in HDA bandwidth,
32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
** A chassis with an HD audio module in the
front panel is required to support 7.1 Surround Sound audio output.
Special features: Total supports 2 x M.2 slots and 4 x SATA
6Gb/s ports*
Intel® Core™ Ultra Processors (Series 2)
M.2_1 slot (Key M), type 2260/2280
(supports PCIe 5.0 x4 mode)
Intel® B860 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280
(supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports
SATA RAID 0/1/5/10.
Other features: 2 x DIMM slots, max. 128GB, DDR5
Supports up to 9066+MT/s (OC), Non-ECC
Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel® Extreme Memory Profile
(XMP) memory module
ASUS Enhanced Memory Profile III (AEMP III)
*Adjustments will be made based on the specifications of mass-produced memory products available on the market.
* Supported memory types, data rate
(speed), and number of DRAM modules vary depending on the CPU and memory
configuration, for more information please refer to CPU/Memory Support list
under the Support tab of product information site or visit
https://www.asus.com/support/download-center/.
* *Non-ECC, un-buffered DDR5 memory
supports On-Die ECC function.
Graphics output: 1 x DisplayPort**
1 x HDMI™ port***
1 x Intel® Thunderbolt™ 4 supports
DisplayPort and Thunderbolt™ video outputs****
* Graphics specifications may vary between
CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in
DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI
2.1.
****Supports up to 8K@60Hz x1 with DSC,
maximum total bandwidth up to 23.8Gbps, for resolution support please check
DisplayPort 2.1 specs.
***** VGA resolution support depends on
processors' or graphic cards
| General Information | |
|---|---|
| Κατασκευαστής | ASUS |
| Chipset Μητρικής | B860 |
| Motherboard Form Factor | N/A |
| Condition | |
| Κατάσταση | Brand New |
| CPU | |
| Κατασκευαστής CPU | Intel |
| Socket Επεξεργαστή | LGA1851 |
| Memory | |
| Τεχνολογία RAM | DDR5 |
| Μέγιστη Υποστηριζόμενη RAM | N/A |
| Αριθμός Slots RAM | 2 |
| Storage | |
| Αριθμός Slots M.2 | 2 |
