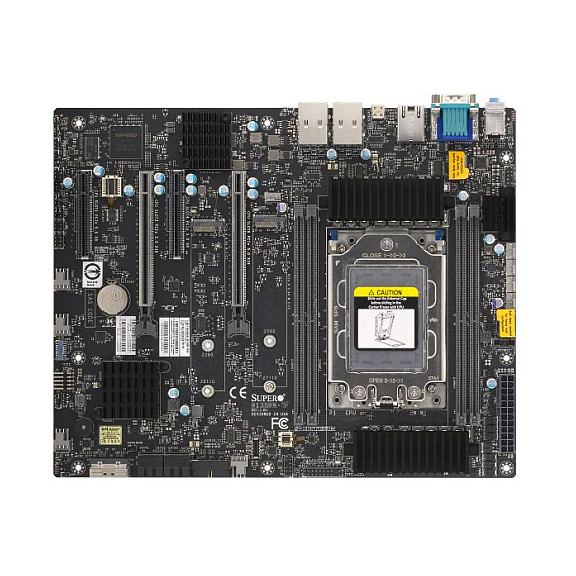

Supermicro H13SRA-TF sTR5 ATX - MBD-H13SRA-TF-O
Supermicro MBD-H13SRA-TF. Processor Manufacturer: AMD, Processor Socket: Socket sTR5, Compatible Processors: AMD Ryzen Threadripper 1000 Series. Supported Memory: DDR5-SDRAM, RAM-Speicher maximal: 4 TB, Arbeitsspeicher Type: DIMM. Unterstützte Speicherlaufwerk-Schnittstellen: M.2, SATA III, Unterstützte Speicherlaufwerke: HDD & SSD, RAID Level: 0, 1, 10. Ethernet Schnittstellen Type: 10 Gigabit Ethernet, LAN-Controller: Broadcom BCM57416. For: Arbeitsstation, Motherboardformfaktor: ATX, Motherboard Chipsatz Familie: AMD
SKU :
21295285Code-barres :
0672042913251MPN :
MBD-H13SRA-TF-OSupermicro MBD-H13SRA-TF. Processor manufacturer: AMD, Processor socket: Socket sTR5, Compatible processor series: AMD Ryzen Threadripper 1000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 4 TB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 10 Gigabit Ethernet, LAN controller: Broadcom BCM57416. Component for: Workstation, Motherboard form factor: ATX, Motherboard chipset family: AMD
Processor manufacturer: AMD
Processor socket: Socket sTR5
Compatible processor series: AMD Ryzen Threadripper 1000 Series
Memory
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory voltage: 1.1 V
ECC сompatibility: ECC
Supported memory clock speeds: 5200 MHz
Supported memory clock speed (max): 5200 MHz
Maximum internal memory: 4 TB
Supported memory module capacities: 96GB, 1024GB, 512GB
Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 4
RAID support: Yes
RAID levels: 0, 1, 10
Graphics
Parallel processing technology support: Not supported
Internal I/O
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Number of SATA III connectors: 4
CPU fan connector: Yes
Number of chassis fan connectors: 7
TPM connector: Yes
Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
USB 3.2 Gen 2x2 Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 2
IPMI LAN (RJ-45) port: Yes
VGA (D-Sub) ports quantity: 1
COM ports quantity: 1
Network
Ethernet LAN: Yes
Ethernet interface type: 10 Gigabit Ethernet
LAN controller: Broadcom BCM57416
Wi-Fi: No
Features
Motherboard chipset: AMD TRX50
Audio output channels: 5.1 channels
Component for: Workstation
Motherboard form factor: ATX
Motherboard chipset family: AMD
Expansion slots
PCI Express x16 (Gen 5.x) slots: 2
BIOS
BIOS type: AMI
BIOS memory size: 32 Mbit
ACPI version: 6.5
System Management BIOS (SMBIOS) version: 3.6
Operational conditions
Storage temperature (T-T): 0 - 50 °C
Operating temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 10 - 85%
Storage relative humidity (H-H): 10 - 95%
Weight & dimensions
Width: 304.8 mm
Depth: 243.8 mm
| General Information | |
|---|---|
| Marque | Supermicro |
| Motherboard Chipset | AMD TRX50 |
| CPU | |
| CPU Manufacturer | Intel |
| Processor Socket | sTR5 |
| Memory | |
| RAM Technology | DDR5 |
| Number of RAM Slots | 4 |
