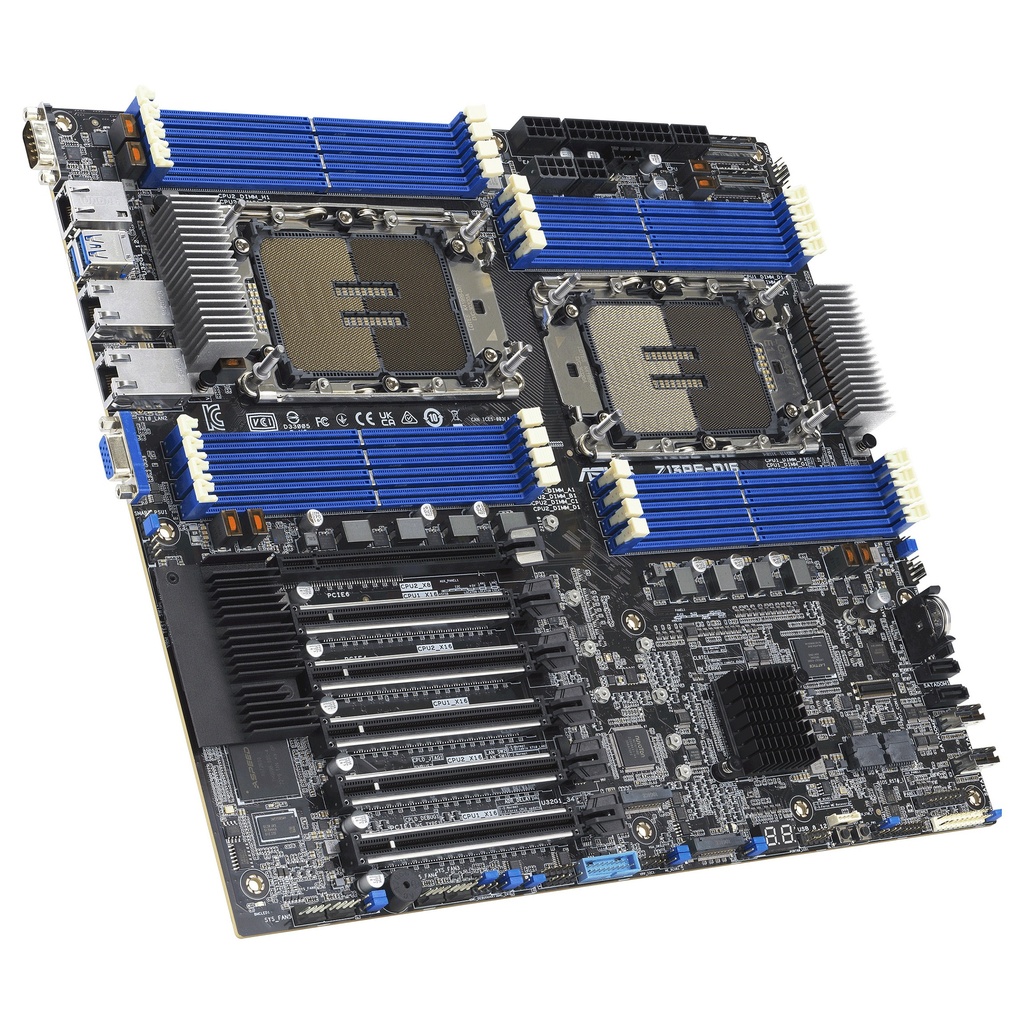

ASUS Z13PE-D16/ASMB11 2x LGA 2x10G LGA4677 E-ATX - 90SB0CA0-M0UAY2
ASUS Z13PE-D16/ASMB11. Prozessorhersteller: Intel, Prozessorsockel: LGA 4677 (Socket E), Kompatible Prozessoren: Intel® Xeon®. Unterstützte Arbeitsspeicher: DDR5-SDRAM, RAM-Speicher maximal: 2 TB, Arbeitsspeicher Typ: DIMM. Unterstützte Speicherlaufwerk-Schnittstellen: M.2, SATA III, Unterstützte Speicherlaufwerke: HDD & SSD. Grafikkarte-Familie: ASPEED, Grafikkarte: AST2600. Ethernet Schnittstellen Typ: 10 Gigabit Ethernet, Schnelles Ethernet, Gigabit Ethernet, LAN-Controller: Intel X710-AT2
Riferimento interno :
21132013Codice a barre :
4711636266833MPN :
90SB0CA0-M0UAY2ASUS Z13PE-D16/ASMB11 2x LGA 2x10G LGA4677 E-ATX - 90SB0CA0-M0UAY2
Intel motherboard on LGA4677 socket with DDR5 memory — a reliable foundation for your PC build.
Technical Specifications
ProcessorProcessor Manufacturer: Intel
Processor Socket: LGA 4677 (Socket E)
Compatible Processors: Intel® Xeon®
Speicher
Supported Memory: DDR5-SDRAM
Memory Slots: 16
Memory Type: DIMM
Memory Channels: Octa-channel
Supported Arbeitsspeichergeschwindigkeit: 4800,5600 MHz
Max RAM: 2 TB
Supported Module Capacities: 16GB, 32GB, 64GB, 128GB
Speicher-Controller
Supported Storage Drives: HDD & SSD
Supported Storage Interfaces: M.2, SATA III
Max HDD Supported: 10
Grafik
Eingebaute Grafikadapter: Ja
Graphics Family: ASPEED
Graphics Card: AST2600
Interne E/A-Connectors
Number of USB 2.0 Schnittstellen: 1
USB 3.2 Gen 1 (3.1 Gen 1) Connectors: 1
SATA III Connectors: 10
ATX Stromstecker (24-pol.): Ja
EPS Stromstecker (8-pin): Ja
TPM-Connector: Ja
E/A-Connectors auf der Rear
USB 3.2 Gen 1 (3.1 Gen 1) Number of der Connectors vom Type A: 2
Number of Ethernet-LAN-Connectors (RJ-45): 2
Number of VGA (D-Sub) Connectors: 1
Number of serielle Connectors: 1
Netzwerk
Ethernet/LAN: Ja
Ethernet Interface Type: 10 Gigabit Ethernet, Schnelles Ethernet, Gigabit Ethernet
LAN-Controller: Intel X710-AT2
Merkmale
Motherboard Chipsatz: Intel C741
For: Server
Motherboardformfaktor: Erweitertes ATX
Motherboard Chipsatz Familie: Intel
Expansion Slots
PCI Express x16-Slots (Gen 5.x): 5
Number of der M.2 (M)-Slots: 2
Betriebsbedingungen
Temperaturbereich bei Lagerung: -40 - 70 °C
Operating Temperature: 10 - 35 °C
Luftfeuchtigkeit bei Lagerung: 20 - 90%
Verpackungsdaten
Paketgewicht: 2,75 kg
Weight und Dimensions
Width: 304,8 mm
Depth: 330,2 mm
Sonstige Funktionen
Weight: 1,75 kg
| General Information | |
|---|---|
| Marca | ASUS |
| Motherboard Chipset | N/A |
| Motherboard Form Factor | E-ATX |
| Condition | |
| Condition | Brand New |
| CPU | |
| CPU Manufacturer | Intel |
| Processor Socket | LGA4677 |
| Memory | |
| RAM Technology | DDR5 |
| Maximum RAM Supported | N/A |
| Number of RAM Slots | 16 |
| Storage | |
| No. of M.2 Slots | 2 |
