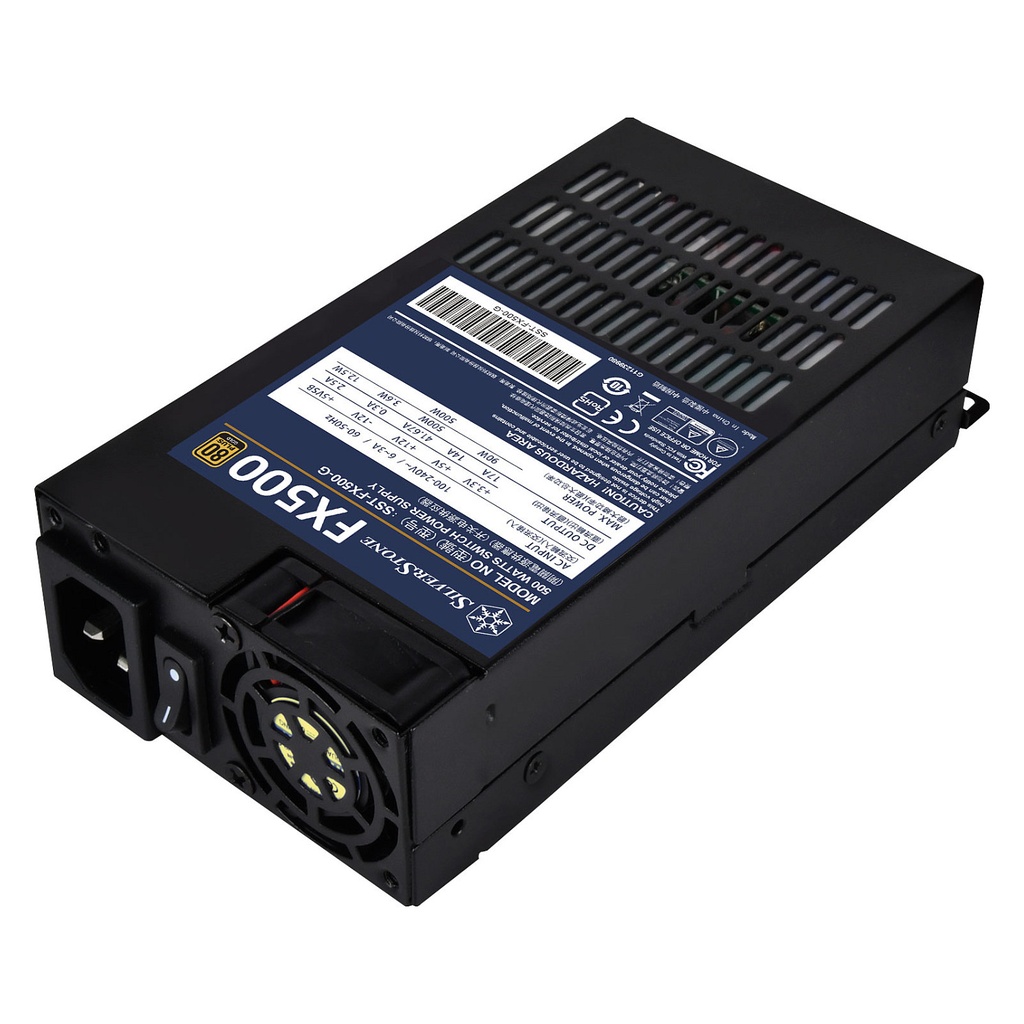

SilverStone SST-FX500-G 500W - SST-FX500-G
Silverstone FX500. Total power: 500 W, AC input voltage: 90 - 264 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 35 cm, SATA power cable length: 150,350 mm. Purpose: Server, Power supply unit (PSU) form factor: Flex ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 4 cm. Width: 81.5 mm, Depth: 150 mm, Height: 40.5 mm
Riferimento interno :
21336257Codice a barre :
4710679810379MPN :
SST-FX500-G500W Silverstone Technology SST-FX500-G
Silverstone FX500. Total power: 500 W, AC input voltage: 90 - 264 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 35 cm, SATA power cable length: 150,350 mm. Purpose: Server, Power supply
Technical Specifications
PowerTotal power: 500 W
AC input voltage: 90 - 264 V
AC input frequency: 47 - 63 Hz
Power factor: 0.9
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 90 W
Combined power (+12V): 500 W
Combined power (+5V): 90 W
Max output current (+3.3V): 14 A
Max output current (+12V): 41.67 A
Max output current (+5V): 17 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2.5 A
Efficiency: 90%
Power protection features: Over power, Over voltage, Overheating, Short circuit
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 35 cm
Number of SATA power connectors: 4
SATA power cable length: 150,350 mm
Peripheral (Molex) power connectors (4-pin): 3
Peripheral (Molex) power cable length: 150,350 mm
PCI Express power connectors (6+2 pin): 2
PCI Express power cable length: 35 cm
CPU P4 connector (4-pin): 5
CPU power connector (4+4 pin): Yes
CPU power cable length: 45 cm
ATX power connector (20+4 pin): Yes
Floppy drive power connector: 1
Floppy disk drive connector: Yes
Floppy disk drive cable length: 15 cm
PCI Express connector: Yes
Cabling type: Non-Modular
Performance
80 PLUS certification: 80 PLUS Gold
Purpose: Server
Power supply unit (PSU) form factor: Flex ATX
ATX version: 2.4
Noise level: 20 dB
Mean time between failures (MTBF): 100000 h
Design
Product colour: Black
Cooling type: Active
Fan diameter: 4 cm
Number of fans: 1 fan(s)
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Weight & dimensions
Width: 81.5 mm
Depth: 150 mm
Height: 40.5 mm
Weight: 960 g
| General Information | |
|---|---|
| Power Supply | 500W |
| Colour | Silver |
| PSU Certification | 80+ Gold |
| Uncategorized | |
| PSU Modularity | Non-Modular |
