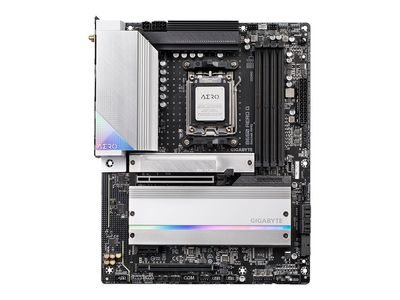

GIGABYTE Mainboard B650 AERO G (rev. 1.0) - ATX - Socket AM5 - AMD B650 - B650 AERO G
GIGABYTE B650 AERO G Mainboard - Unterstützt AMD Ryzen 9000er-Serie CPUs, bis zu 8000 MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2,5 GbE LAN, WIFI 6E, USB 3.2 Gen 2. Prozessorhersteller: AMD, Prozessorsockel: Sockel AM5, Kompatible Prozessoren: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Unterstützte Arbeitsspeicher: DDR5-SDRAM, RAM-Speicher maximal: 256 GB, Arbeitsspeicher Typ: DIMM. Unterstützte Speicherlaufwerk-Schnittstellen: M.2, SATA III, Unterstützte Speicherlaufwerke: HDD & SSD, RAID Level: 0, 1, 10. Maximale Auflösung: 4096 x 2160 Pixel. Ethernet Schnittstellen Typ: 2.5 Gigabit Ethernet, Top WLAN-Standard: Wi-Fi 6E (802.11ax), WLAN-Standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E...
Prozessorhersteller: AMD
Prozessorsockel: Sockel AM5
Kompatible Prozessoren: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Unterstützte Prozessorsteckplätze: Sockel AM5
Speicher
Unterstützte Arbeitsspeicher: DDR5-SDRAM
Anzahl der Speichersteckplätze: 4
Arbeitsspeicher Typ: DIMM
Speicherkanäle: Zweikanalig
ECC-Kompatibilität: Nicht-ECC
Unterstützte Arbeitsspeichergeschwindigkeit: 8000,7800,7600,7200,7000,6800,6666,6600,6400,6200,6000,5600,5200,4800,4400 MHz
Unterstützte Speichertaktrate (max.): 8000 MHz
RAM-Speicher maximal: 256 GB
Unbuffered Speicher: Ja
Maximaler interner Speicher pro Steckplatz: 64 GB
Speicher-Controller
Unterstützte Speicherlaufwerke: HDD & SSD
Unterstützte Speicherlaufwerk-Schnittstellen: M.2, SATA III
Maximale unterstützte Anzahl der HDD: 4
Anzahl der unterstützten Speicherlaufwerke: 7
RAID-Unterstützung: Ja
RAID Level: 0, 1, 10
Grafik
Parallele Verarbeitungstechnologie: Nicht unterstützt
Maximale Auflösung: 4096 x 2160 Pixel
HDCP: Ja
DirectX-Version: 12.0
Diskreter Grafik support: Ja
Interne E/A-Anschlüsse
Anzahl USB 2.0 Schnittstellen: 2
USB 3.2 Gen 1 (3.1 Gen 1) Anschlüsse: 1
USB 3.2 Gen 2x2-Anschlüsse: 1
SATA III Anschlüsse: 4
Front Panel Audiostecker: Ja
Frontpanel-Stecker: Ja
ATX Stromstecker (24-pol.): Ja
CPU Ventilatorstecker: Ja
Zahl der Chassisventilatorstecker: 6
EPS Stromstecker (8-pin): Ja
TPM-Anschluss: Ja
Serielle Port-Headers: 1
12-V-Stromanschluss: Ja
Anzahl der Wasserpumpenanschlüsse: 3
Anzahl der Temperatursensor-Header: 2
RGB-LED-Stiftleiste: Ja
Anzahl der RGB-LED-Stiftleisten: 5
E/A-Anschlüsse auf der Rückseite
Anzahl USB 2.0 Anschlüsse: 2
USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A: 4
USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ A: 3
USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ C: 1
Anzahl Ethernet-LAN-Anschlüsse (RJ-45): 1
Anzahl HDMI-Anschlüsse: 1
HDMI-Version: 2.1
Anzahl DisplayPort Anschlüsse: 1
DisplayPorts-Version: 1.4
Line-in: Ja
Mikrofon-Eingang: Ja
S/PDIF-Ausgang: Ja
WiFi-AP-Antennenbuchse: 2
Netzwerk
Ethernet/LAN: Ja
Ethernet Schnittstellen Typ: 2.5 Gigabit Ethernet
WLAN: Ja
Top WLAN-Standard: Wi-Fi 6E (802.11ax)
WLAN-Standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
WLAN-Controllermodell: RZ616
Bluetooth: Ja
Bluetooth-Version: 5.2
Merkmale
Motherboard Chipsatz: AMD B650
Audio Kanäle: 7.1 Kanäle
Produktfarbe: Schwarz
PC Gesundheitsüberwachung: Ventilator, Geräusch, Temperatur, Spannung, Water cooling
Komponente für: PC
Motherboardformfaktor: ATX
Motherboard Chipsatz Familie: AMD
Energiequelle: ATX
Unterstützt Windows-Betriebssysteme: Windows 10 x64, Windows 11 x64
Erweiterungssteckplätze
PCI-Express x16 (Gen 3.x)-Anschlüsse: 1
PCI Express x16-Steckplätze (Gen 4.x): 2
Anzahl der M.2 (M)-Steckplätze: 3
1. M.2 größte Schlüsselgröße: 25110
1. M.2 höchste PCI Express-Generation: 5.0
2. M.2 größte Schlüsselgröße: 25110
2. M.2 höchste PCI Express-Generation: 4.0
3. M.2 größte Schlüsselgröße: 25110
3. M.2 höchste PCI Express-Generation: 4.0
BIOS
BIOS-Typ: UEFI AMI
BIOS-Speichergröße: 256 Mbit
ACPI-Version: 5.0
Clear CMOS-Jumper: Ja
Desktop Management Interface (DMI) Version: 2.7
Systemverwaltung BIOS (SMBIOS) Version: 2.7
Logistikdaten
Ursprungsland: China
Menge pro Versandkarton: 1 Stück(e)
Akku/Batterie
Batteriegewicht: 3 g
Lithiumgewicht pro Akku: 0,07 g
Anzahl Batteriezellen: 1
Akku-/Batterietechnologie: Lithium-Manganese Dioxide (LiMnO2)
Akku-/Batterietyp: CR2032
Verpackungsdaten
Verpackungsbreite: 335 mm
Verpackungstiefe: 270 mm
Verpackungshöhe: 80 mm
Paketgewicht: 2,49 kg
Gewicht und Abmessungen
Breite: 305 mm
Tiefe: 244 mm
Höhe: 35 mm
Lieferumfang
Akkus/Batterien enthalten: Ja
Antenne enthalten: Ja
Schrauben enthalten: Ja
Mitgelieferte Software: Norton® Internet Security (OEM version)LAN bandwidth management software
Technische Details
Garantiezeit: 3 Jahr(e)
| General Information | |
|---|---|
| Manufacturer | Gigabyte |
| Motherboard Chipset | AMD B650 |
| CPU | |
| CPU Manufacturer | AMD |
| Processor Socket | AM5 |
| Memory | |
| RAM Technology | DDR5 |
| Maximum RAM Supported | 256GB |
| Number of RAM Slots | 4 |
| Storage | |
| No. of M.2 Slots | 3 |
