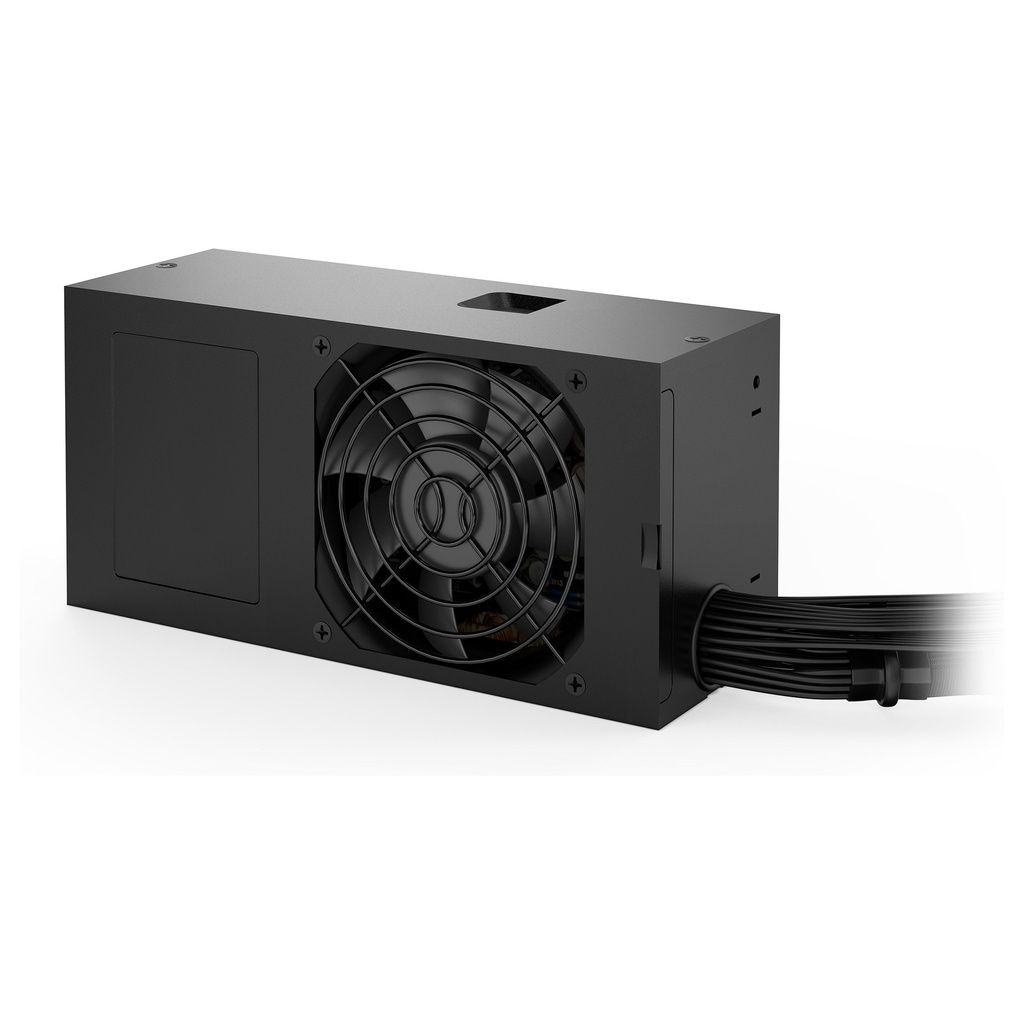

be quiet! be quiet! Be Quiet! TFX 300 BeQuiet! TFX Power 3 300W 80+ Gold - BN323
be quiet! TFX POWER 3 300W Gold. Total Power: 300 W, AC Input Voltage: 100 - 240 V, Spitzenstrom: 350 W. Motherboard Connector: 20+4 pin ATX, Motherboard Cable Length: 35 cm, SATA Power Cable Length: 300,450,600 mm. Purpose: PC, Power Supply (PSU) Form Factor: TFX, 80 PLUS Certification: 80 PLUS Gold. Colour: Black, Cooling: Active, Fan Diameter: 8 cm. Konformitätsbescheinigungen: RoHS, WEEE
SKU :
120945Barcode :
4260052188293MPN :
BN323be quiet! TFX POWER 3 300W Gold. Total power: 300 W, AC input voltage: 100 - 240 V, Peak power: 350 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 35 cm, SATA power cable length: 300,450,600 mm. Purpose: PC, Power supply unit (PSU) form factor: TFX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 8 cm. Compliance certificates: RoHS, WEEE
Total power: 300 W
Peak power: 350 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Input current: 4/2 A
Maximum input current (@110V): 4 A
Maximum input current (@220V): 2 A
Power factor: 0.98
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 103 W
Combined power (+12V): 288 W
Combined power (+5V): 103 W
Max output current (+3.3V): 18 A
Max output current (+12V1): 13 A
Max output current (+12V2): 13 A
Max output current (+5V): 18 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Hold time: 29 ms
Efficiency: 90.6%
Power protection features: Over current, Over power, Over voltage, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 35 cm
Number of SATA power connectors: 3
SATA power cable length: 300,450,600 mm
Peripheral (Molex) power connectors (4-pin): 2
Peripheral (Molex) power cable length: 300,450 mm
PCI Express power connectors (6+2 pin): 1
PCI Express power cable length: 40 cm
CPU P4 connector (4-pin): 1
CPU power cable length: 35 cm
Floppy drive power connector: 1
Floppy disk drive cable length: 60 cm
PCI Express connector: Yes
Cabling type: Non-Modular
Performance
80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: TFX
ATX version: 2.52
EPS version: 2.92
Noise level: 21.7 dB
Mean time between failures (MTBF): 100000 h
Design
Product colour: Black
Cooling type: Active
Fan diameter: 8 cm
Number of fans: 1 fan(s)
Illumination: No
Certificates
Compliance certificates: RoHS, WEEE
Safety regulation & standards
Safety: CE, CB, TÜV, CU
Weight & dimensions
Width: 85 mm
Depth: 175 mm
Height: 65 mm
Weight: 1.1 kg
Packaging data
Package width: 159 mm
Package depth: 80 mm
Package height: 215 mm
Package weight: 1.43 kg
Package type: Box
Technical details
Sustainability compliance: Yes
Sustainability certificates: ENERGY STAR, ErP
Logistics data
Shipping (inner) case length: 47.4 cm
Shipping (inner) case width: 27.5 cm
Shipping (inner) case height: 19.5 cm
Products per shipping (inner) case: 6 pc(s)
Shipping (inner) case gross weight: 9.39 kg
Harmonized System (HS) code: 84733020
| General Information | |
|---|---|
| Manufacturer | be quiet! |
| Power Supply | 300W |
| Colour | Gold |
| PSU Certification | 80+ Gold |
| Uncategorized | |
| PSU Modularity | Modular |
