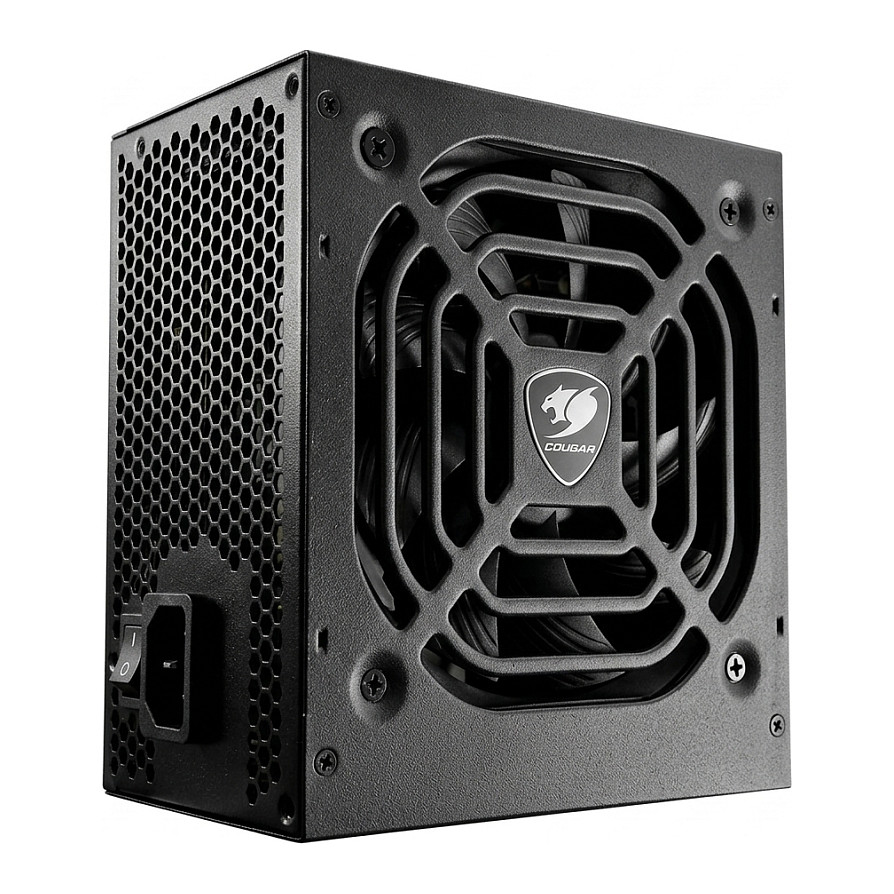

Cougar STC 230V EU 600W - CGR-STC600
COUGAR Power Supply STC 600W ATX / 80 Plus 230V EU. Total power: 600 W, AC input voltage: 200 - 240 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 45 cm, SATA power cable length: 450 mm. Purpose: PC, 80 PLUS certification: 80 PLUS. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: CE, EAC, RoHS
SKU :
21336275Barcode :
4710483774324MPN :
CGR-STC600COUGAR Power Supply STC 600W ATX / 80 Plus 230V EU. Total power: 600 W, AC input voltage: 200 - 240 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 45 cm, SATA power cable length: 450 mm. Purpose: PC, 80 PLUS certification: 80 PLUS. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: CE, EAC, RoHS
COUGAR STC series is a decent PSU with 230V EU Standard efficiency certified with flawless power delivery. Built by reliability and low acoustic sound, it is the nicest choice for building up the PC system.
Power Conversion Efficiency
Up to 86% efficiency under 230V. A guaranteed highly reliable power supply.
Active Power Factor CorrectionHigh power conversion efficiency. PF value up to 99%, provides clean and reliable power
120mm Extreme Temperature Control
Using COUGAR’s exclusive 120mm silent fan, the advanced frame increase the concentration of air-flow and its fan curvature has been fine-tuned to reduce vibration at any loads, helping you enjoy a quieter gaming experience.
Assigned Japanese Components
STC includes 105ºC Japanese standby capacitor will keep providing the stable PSU for a long time.
The Japanese polypropylene capacitor minimize the noise during the voltage transition.
Total power: 600 W
AC input voltage: 200 - 240 V
AC input frequency: 50 Hz
Input current: 5 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 130 W
Combined power (+12V): 588 W
Combined power (+5V): 130 W
Max output current (+3.3V): 18 A
Max output current (+12V): 49 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Power protection features: Over current, Over power, Over voltage, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 45 cm
Number of SATA power connectors: 6
Number of PATA power connectors: 2
SATA power cable length: 450 mm
Peripheral (Molex) power connectors (4-pin): 2
Peripheral (Molex) power cable length: 450 mm
PCI Express power connectors (6+2 pin): 2
CPU power connector (4+4 pin): Yes
CPU power cable length: 65 cm
Performance
80 PLUS certification: 80 PLUS
Purpose: PC
Design
Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Certificates
Compliance certificates: CE, EAC, RoHS
Weight & dimensions
Width: 140 mm
Depth: 150 mm
Height: 86 mm
Weight: 1.52 kg
Packaging data
Package width: 187 mm
Package depth: 158 mm
Package height: 165 mm
Package weight: 1.8 kg
Logistics data
Country of origin: China
Other features
Commodity Classification Automated Tracking System (CCATS): 8504401300
| Power Supply | 600W |
