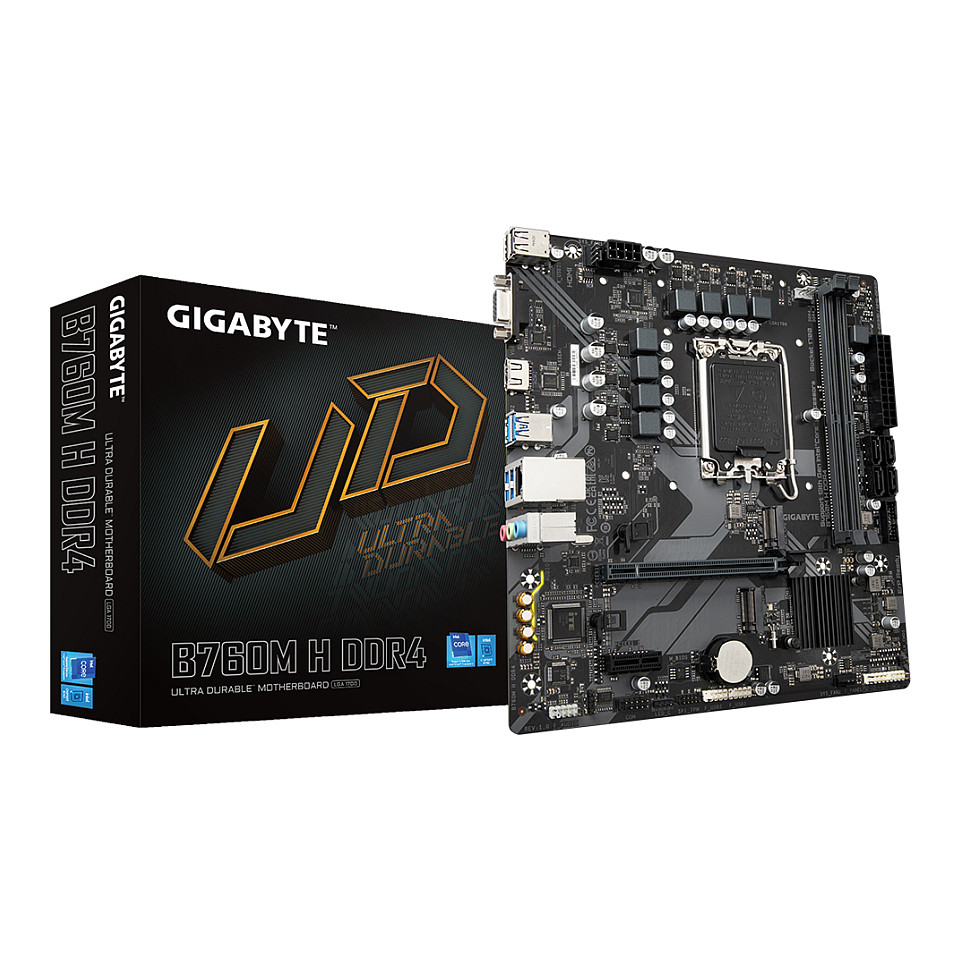

Gigabyte B760M B760 LGA1700 - B760M H DDR4
GIGABYTE B760M H DDR4 Motherboard - Supports Intel Core 14. Generation CPUs, 6+1+1 Phasen Digital VRM, bis zu 3200MHz DDR4 (OC), 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen1. Processor Manufacturer: Intel, Processor Socket: LGA 1700, Compatible Processors: Intel® Celeron®, Intel® Pentium® Gold. Supported Memory: DDR4-SDRAM, Max RAM: 64 GB, Memory Type: DIMM. Supported Storage Interfaces: M.2, SATA III, RAID Level: 0, 1, 5, 10. Ethernet Interface Type: Gigabit Ethernet. For: PC, Motherboardformfaktor: micro ATX, Motherboard Chipsatz Familie: Intel
Gigabyte B760M B760 LGA1700 - B760M H DDR4
Intel B760 motherboard on LGA1700 socket with DDR4 memory — a reliable foundation for your PC build.
Technical Specifications
ProcessorProcessor manufacturer: Intel
Processor socket: LGA 1700
Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold
Maximum number of SMP processors: 1
Supported processor sockets: LGA 1700
Maximum internal memory supported by processor: 64 GB
Memory
Supported memory types: DDR4-SDRAM
Number of memory slots: 2
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: Non-ECC
Supported memory clock speeds: 2133,2400,2666,2933,3000,3200 MHz
Supported memory clock speed (max): 3200 MHz
Maximum internal memory: 64 GB
Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Storage controllers
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 4
Number of storage drives supported: 6
RAID support: Yes
RAID levels: 0, 1, 5, 10
Graphics
Parallel processing technology support: Not supported
DirectX version: 12.1
Internal I/O
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 4
Total number of SATA connectors: 4
Front panel audio connector: Yes
Front panel connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
TPM connector: Yes
Serial port headers: 1
RGB LED pin header: Yes
Rear panel I/O ports
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Ethernet LAN (RJ-45) ports: 1
VGA (D-Sub) ports quantity: 1
HDMI ports quantity: 1
HDMI version: 1.4
DisplayPorts quantity: 1
DisplayPort version: 1.4
Network
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
Wi-Fi: No
Features
Motherboard chipset: Intel B760 Express
Audio chip: Realtek ALC897
Audio output channels: 7.1 channels
Product colour: Brown
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: Intel
Power source type: ATX
Windows operating systems supported: Windows 10, Windows 11
Expansion slots
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 2
BIOS
BIOS type: UEFI AMI
BIOS memory size: 128 Mbit
ACPI version: 5.0
Clear CMOS jumper: Yes
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
Logistics data
Country of origin: China
Products per shipping (inner) case: 1 pc(s)
Battery
Battery weight: 3 g
Lithium weight per battery: 0.07 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
Packaging data
Package width: 265 mm
Package depth: 265 mm
Package height: 54 mm
Package weight: 825 g
Weight & dimensions
Width: 230 mm
Depth: 215 mm
Height: 35 mm
Packaging content
Batteries included: Yes
Technical detail
| General Information | |
|---|---|
| Manufacturer | Gigabyte |
| Motherboard Chipset | B760 |
| Motherboard Form Factor | Micro-ATX |
| Condition | |
| Condition | Brand New |
| CPU | |
| CPU Manufacturer | Intel |
| Processor Socket | LGA1700 |
| Memory | |
| RAM Technology | DDR4 |
| Maximum RAM Supported | 64GB |
| Number of RAM Slots | N/A |
| Storage | |
| No. of M.2 Slots | 2 |
